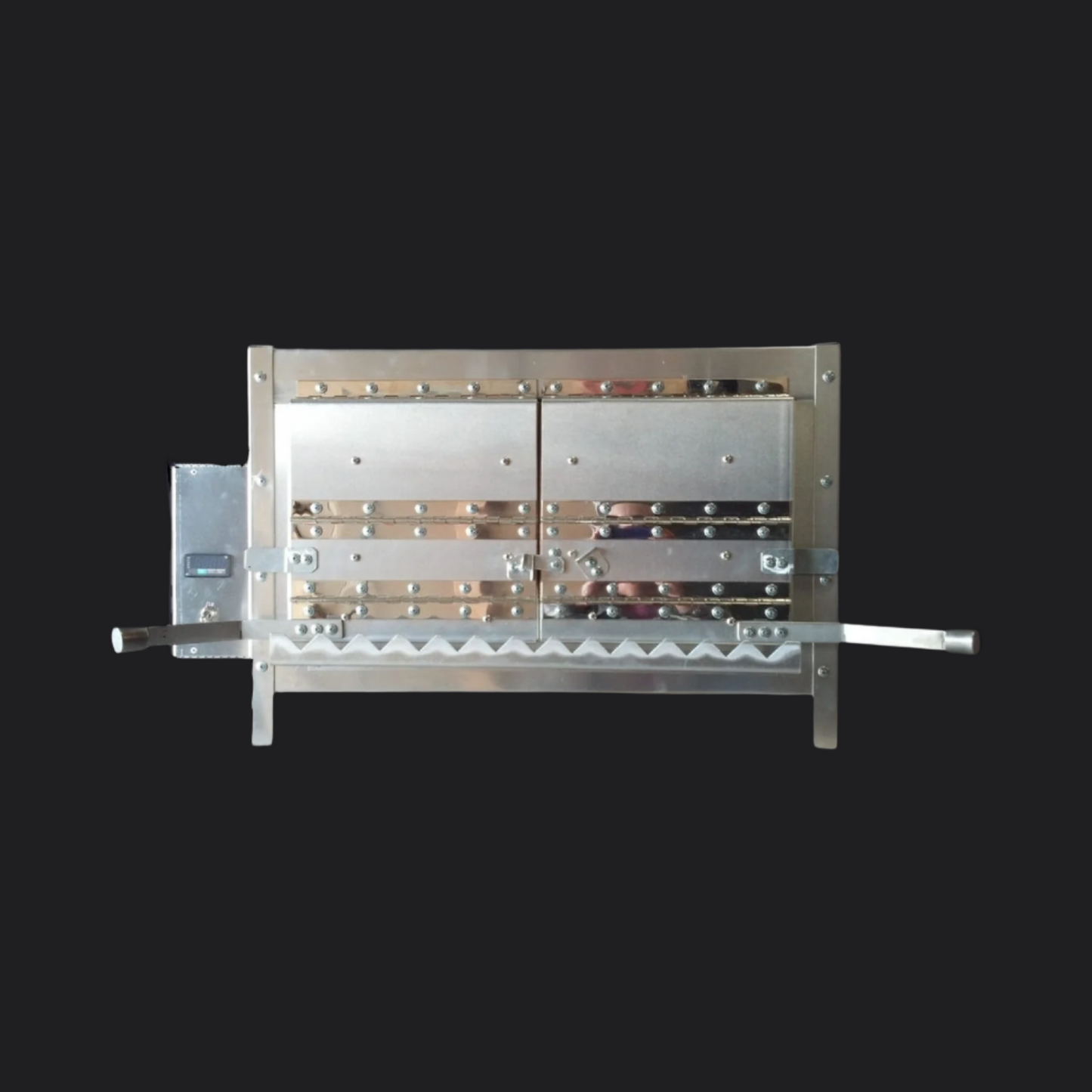

Regular Deep and Tall Guy Aluminum Body Kiln

$ 1,125.00

These are ideal for your versatile loading needs.  It has all the features of the Regular Guy with added depth and height. Great for tube prep-work and high octane production with height for tall finished work.

Regular Deep and Tall  Guy:

  • Interior size: 11" deep x 18" wide x 9" tall
  • Exterior size including controller: 13.5" deep x 27" wide x 15" tall

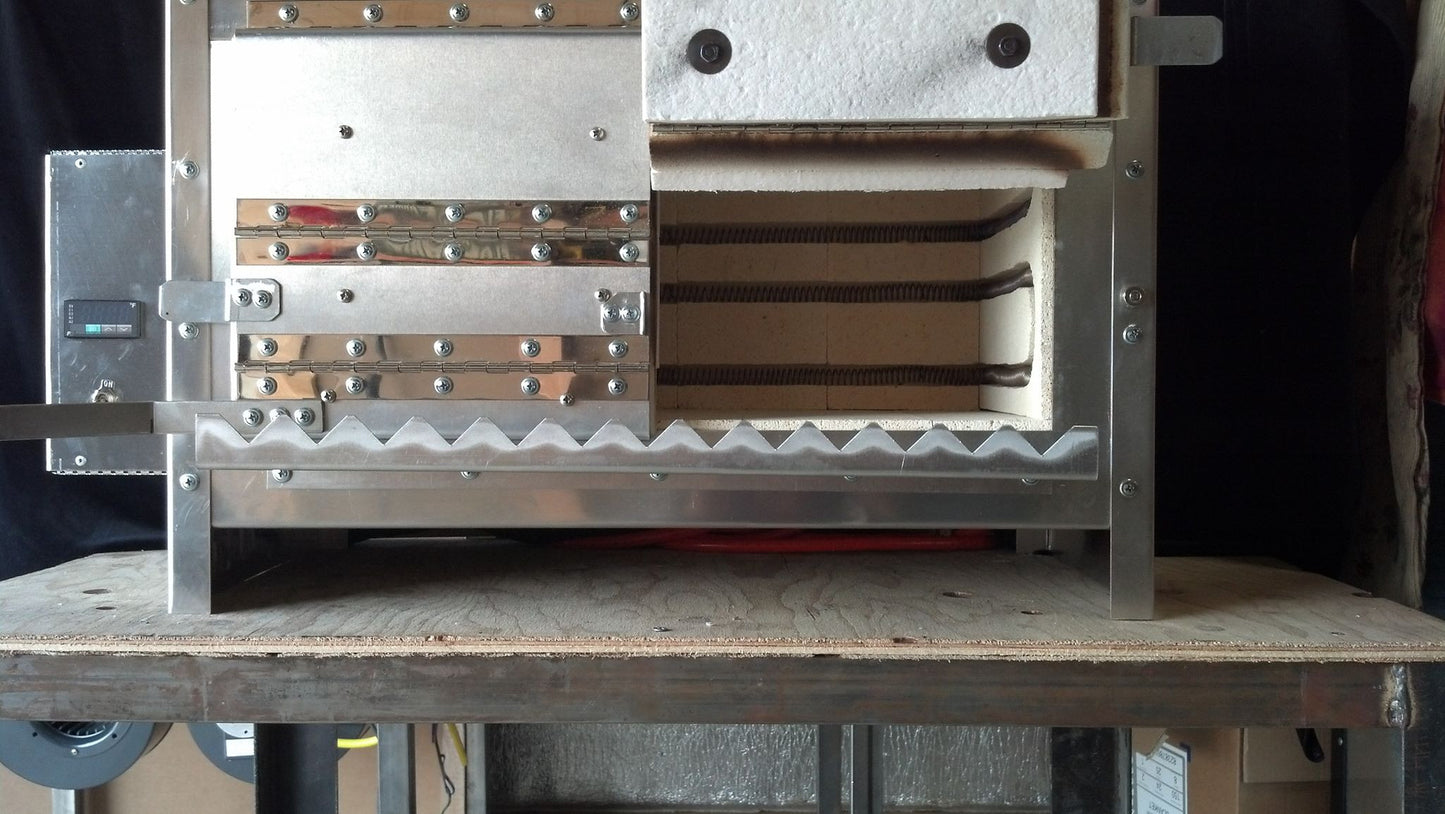

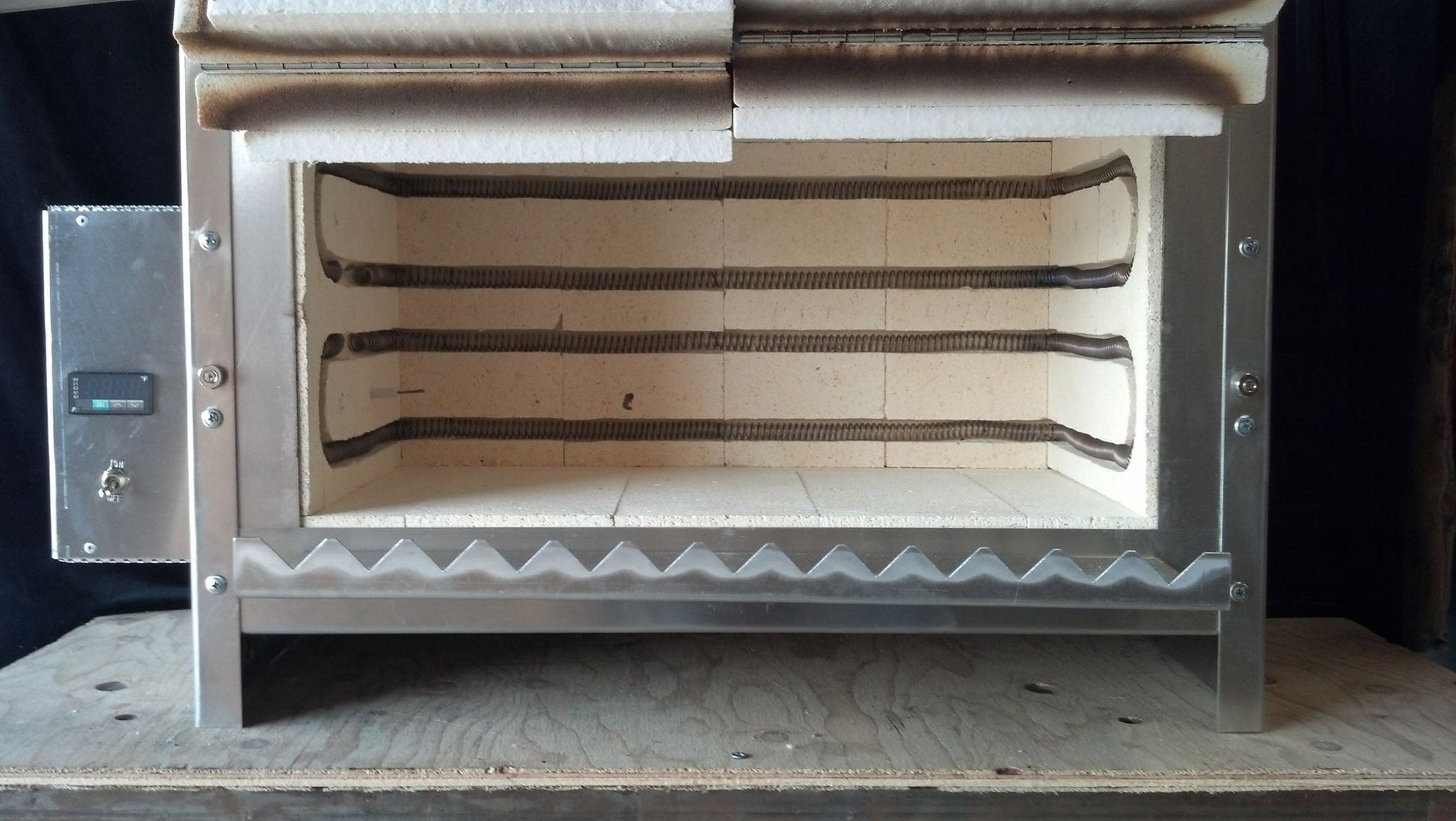

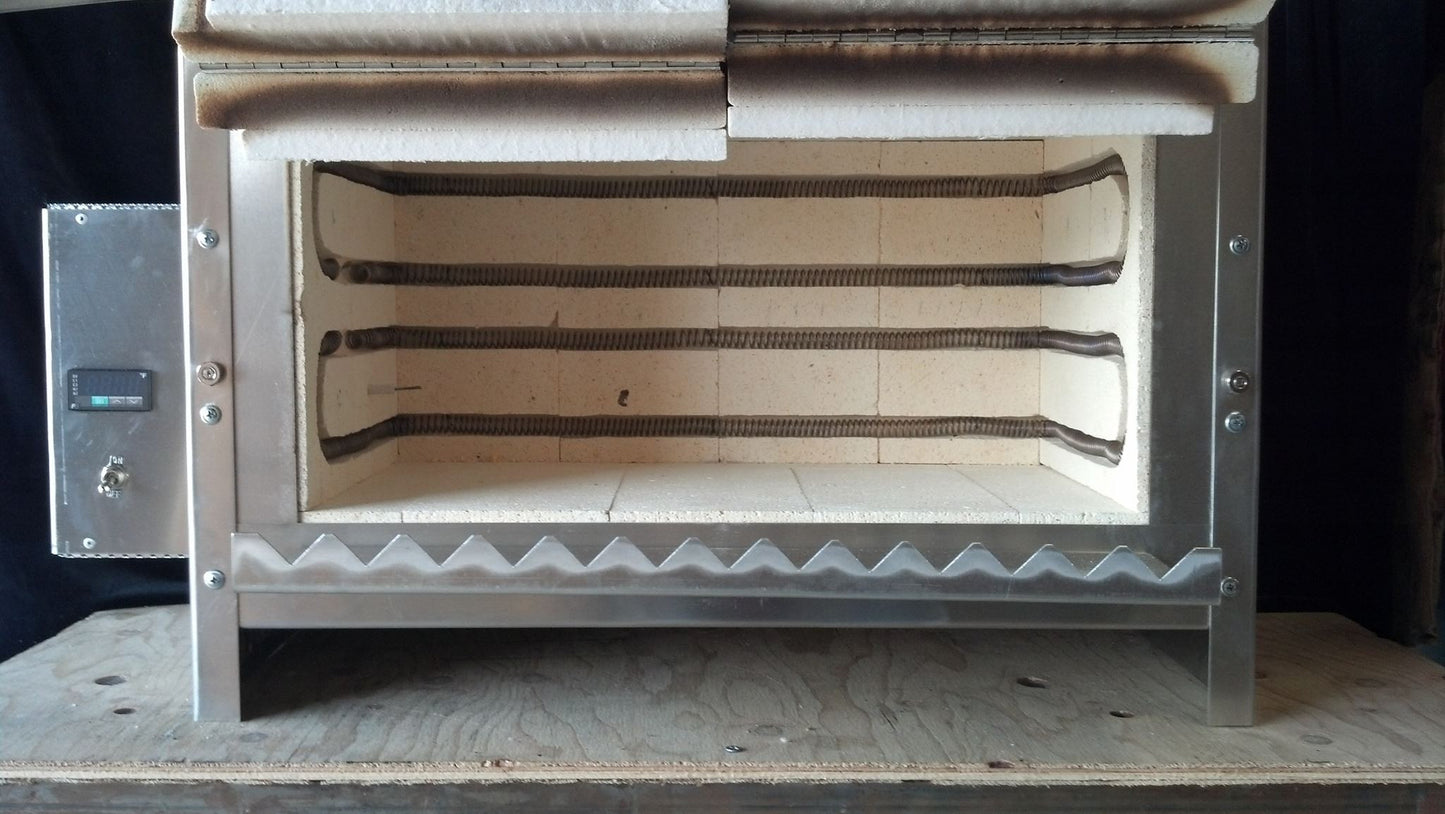

  • Elements are in the roof of the kiln or in the side walls, your choice

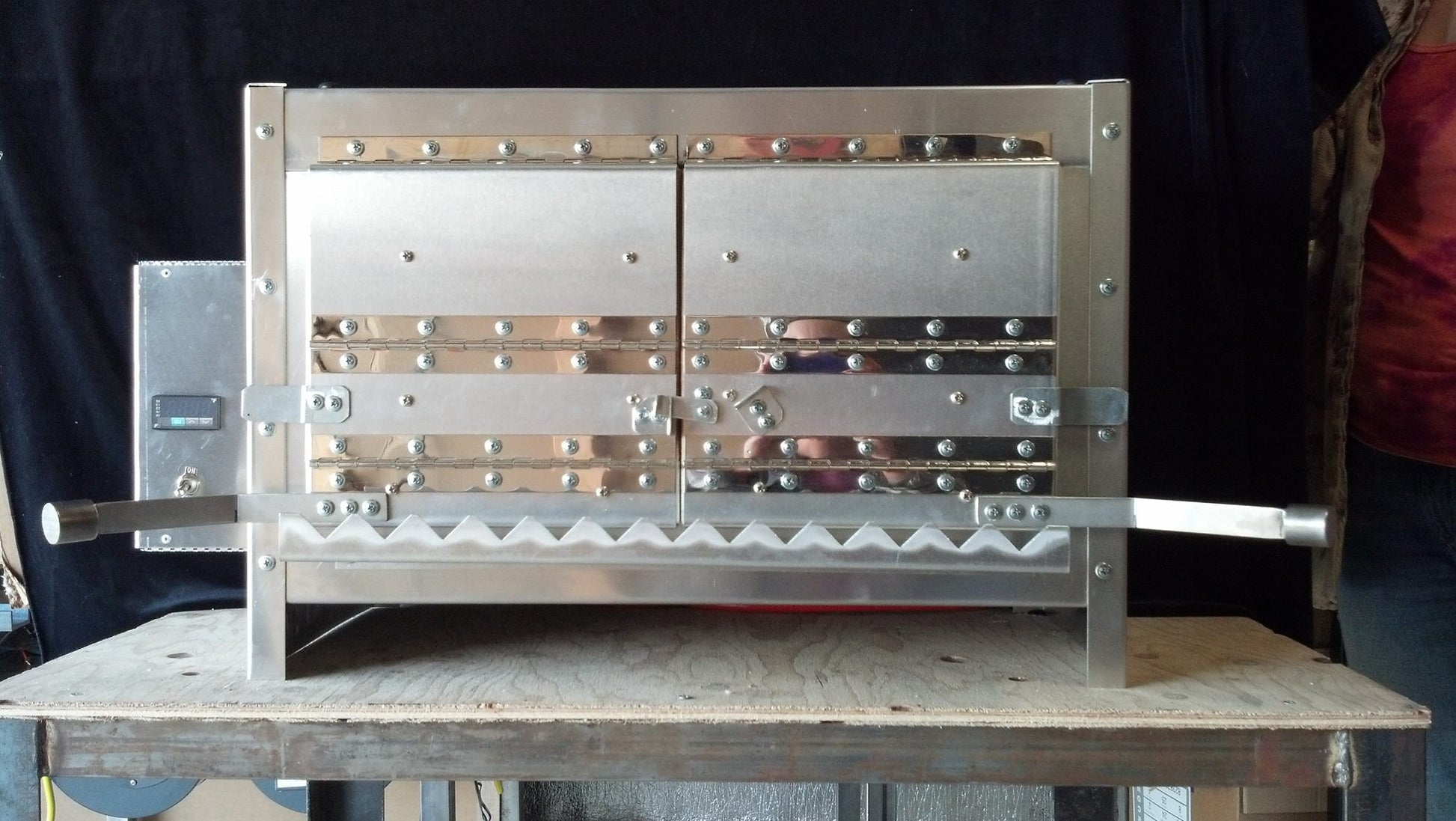

  • Two 9" tall x 9" wide doors, total door width 18"
  • 18" wide V Groove Tube rest with no mandrel gap, or mandrel rest with mandrel gap
  • Max Temp: 1500 F
  • 110 volts 16 amps, Plugs into a standard 20 amp household outlet
  • Available in 240 volt for an additional $50
  • Comes standard with Fuji Controller
  • 1” Punti Door option included if selected in your order
  • Second punti door height available for $60 (middle hinge pictured)
  • Build time is 3-4 weeks, each order is customized to the customers working style.
  • We will call you or email you to confirm your working style, and finalize your door, rest and programming as we approach your build on the build list.
  • Call to ask about a custom size in the same 1782 cubic inch range for the same cost (length x width x height)
  • Ships via FedEx for $90 with tracking info sent to your email at time of shipment
